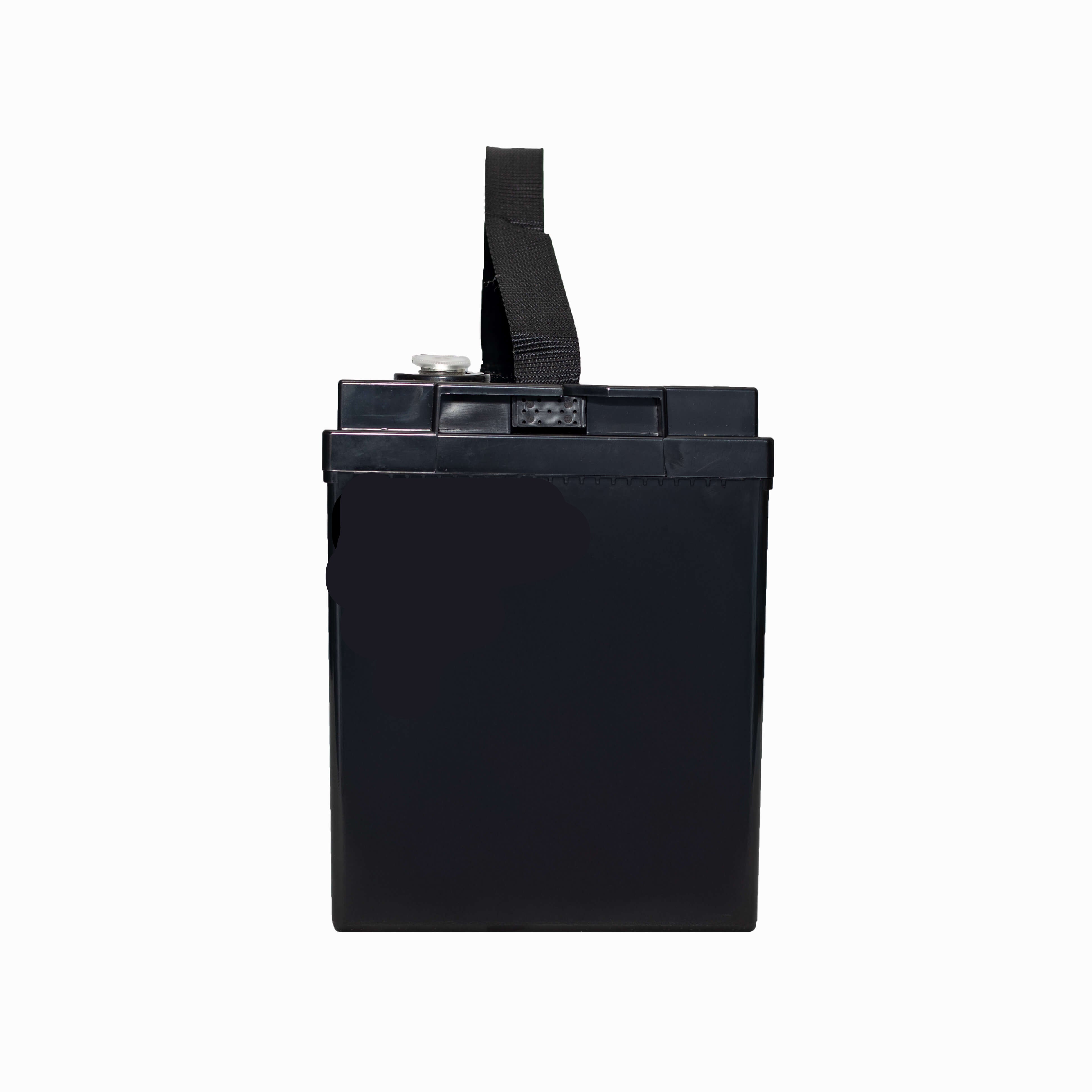

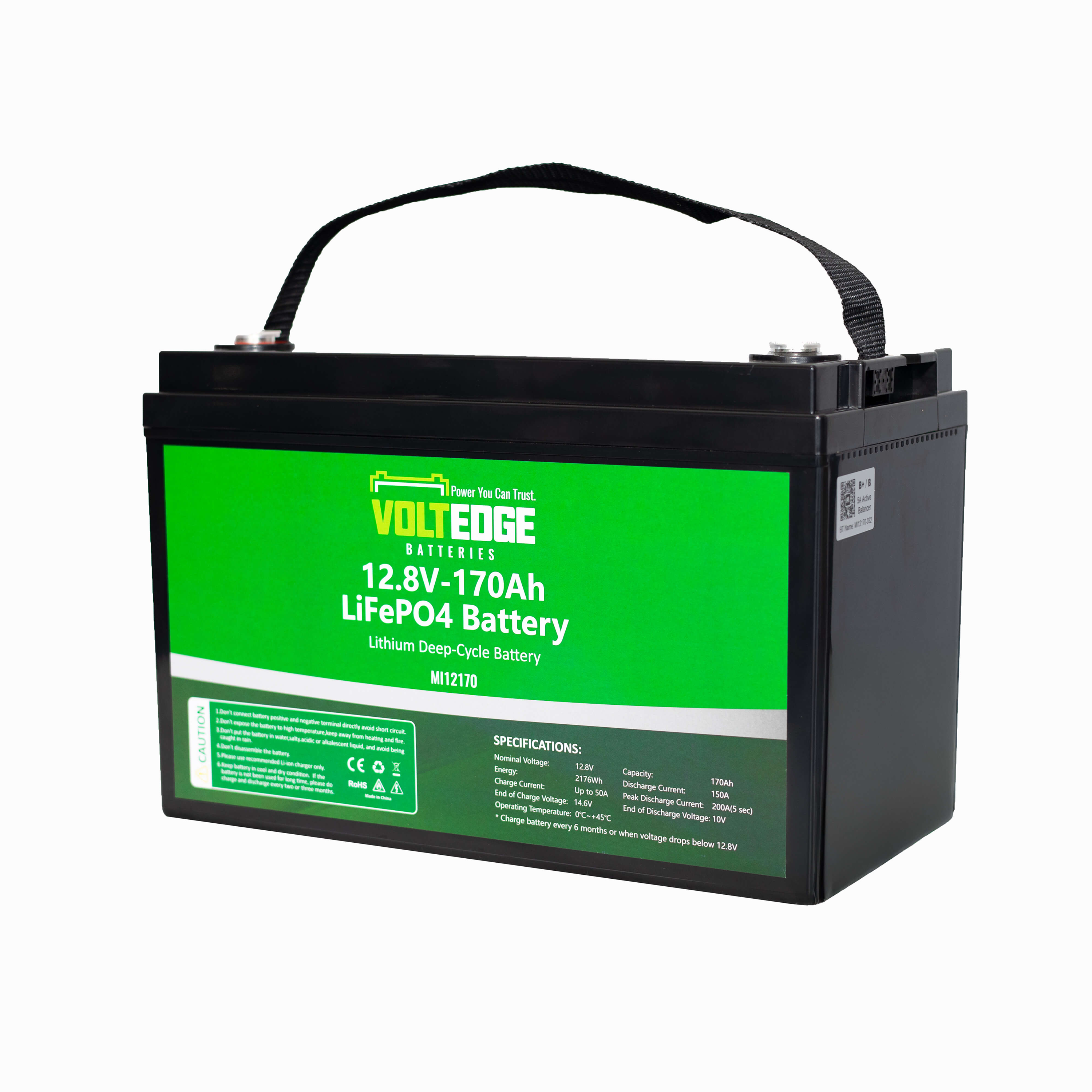

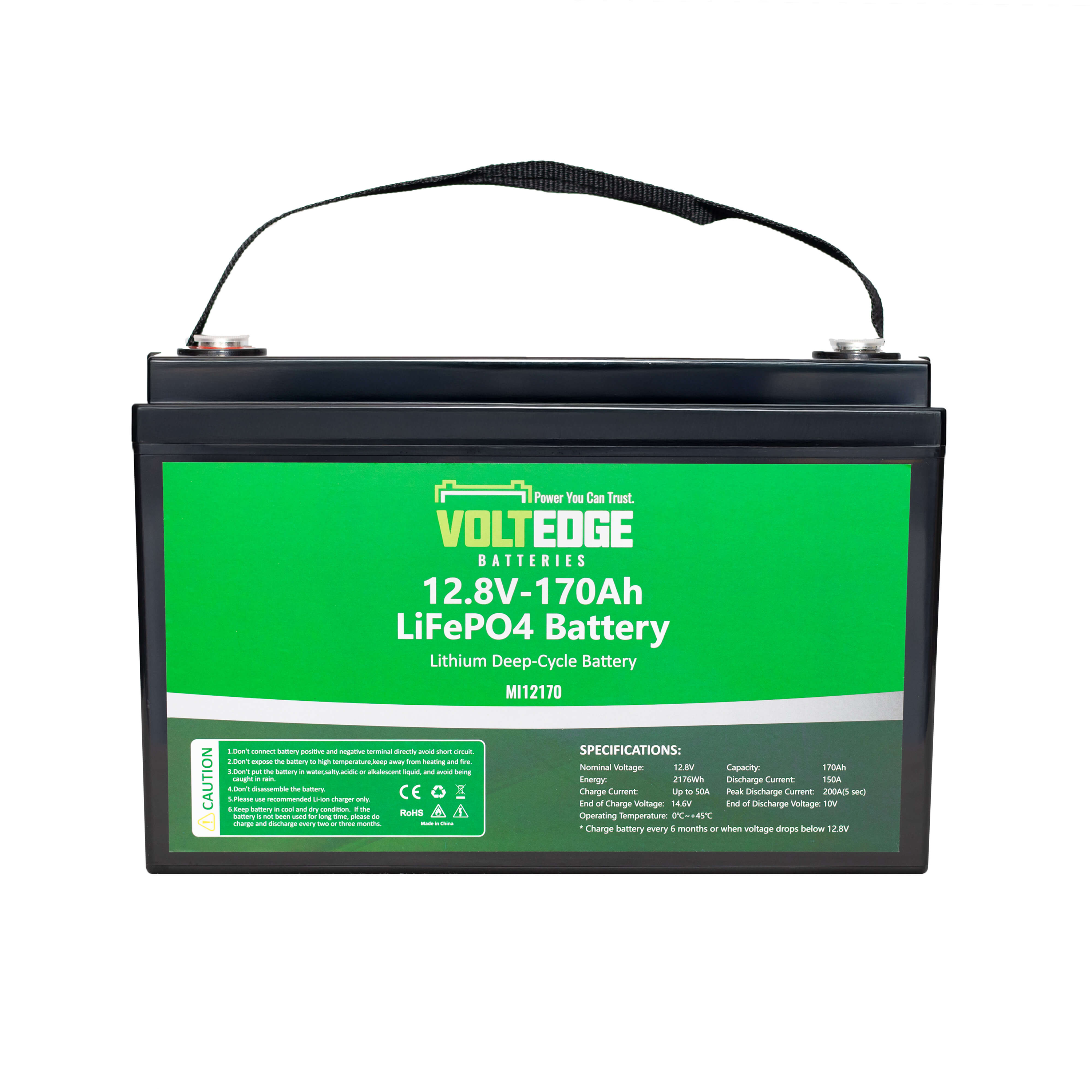

VoltEdge (Lite) 12.8V 170AH Lithium LiFePO4 Battery

VoltEdge (Lite) 12.8V 170Ah LiFePO₄, Ideal for RV, Marine, 4X4, Solar, and Off-Grid Use.

Why You Need the VoltEdge (Lite) 12.8V 170Ah Lithium

Backed by a Market-Leading 5-Year Full Australian Warranty

Approved in accordance with IEC 62619

• The VoltEdge (Lite) 12.8V 170Ah Lithium  is a powerful, long-lasting LiFePO₄ deep cycle battery, engineered for demanding off-grid, marine, RV, and backup applications. With 2176Wh of energy capacity and a ≥5000-cycle life, it delivers exceptional reliability and endurance.
• Its IP65-rated ABS+PC casing offers durability and protection against dust and water. The 170Ah also features built-in safety mechanisms, climate resistance, and a lightweight design (~14.9 kg) that makes it perfect for portable and fixed energy storage systems.

Key Features

• Battery Type: LiFePO₄
• Voltage/Capacity: 12.8V / 170Ah
• Charge Current: 20A standard / 40A max
• Discharge: 50A standard / 100A max / 150A peak (5s)
• Cycle Life: ≥5000 cycles @ 80% DoD
• Cut-off Voltage: 10V ± 0.2V
• Charge Voltage: 14.6V ± 0.2V
• Temperature Range: 0–45°C (charge), -5–55°C (discharge)
• IP65 protection, M8 terminals, black colour

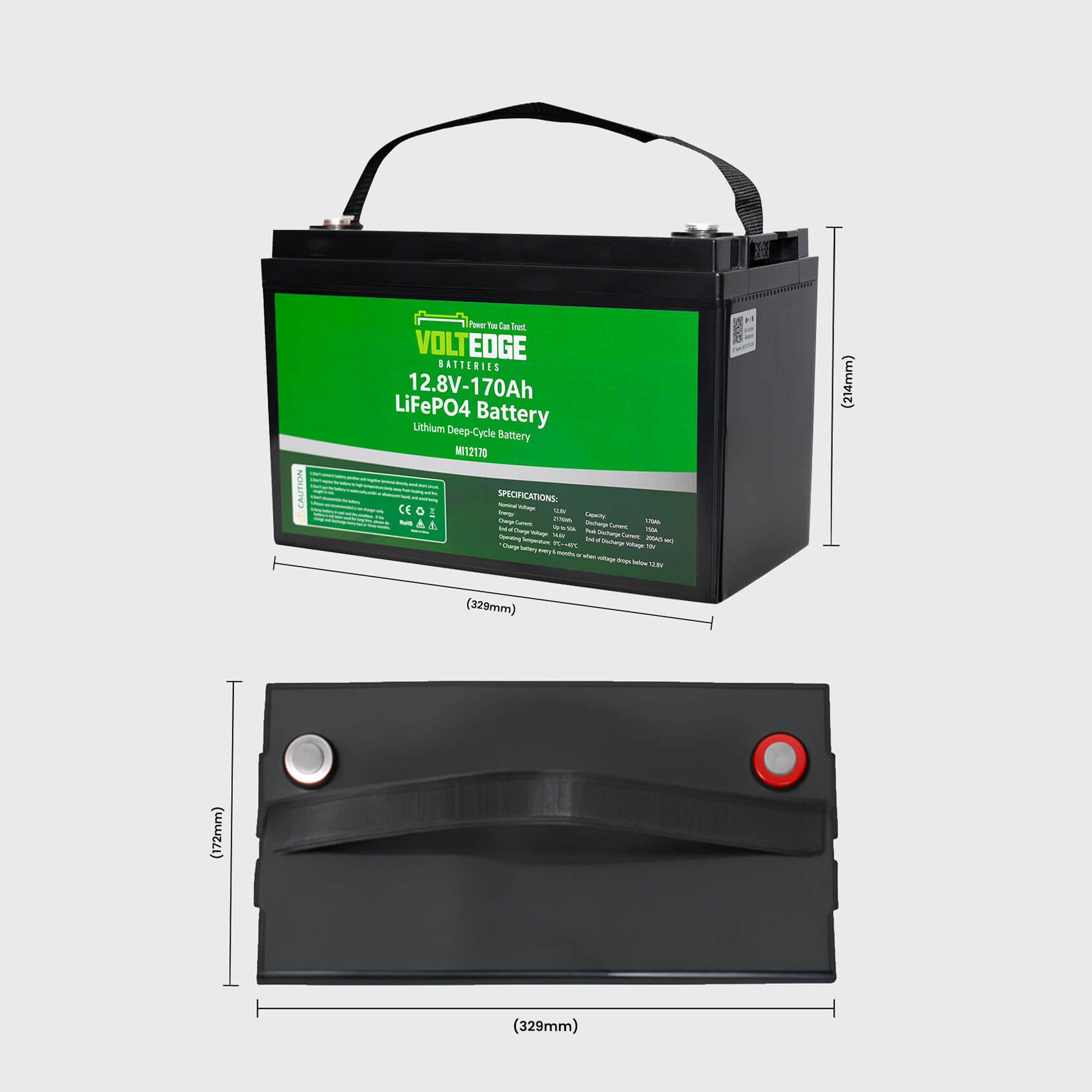

• Dimensions: 329 × 172 × 214 mm(L × W × H)
• Application: RV, Marine, 4X4, Solar and Camping

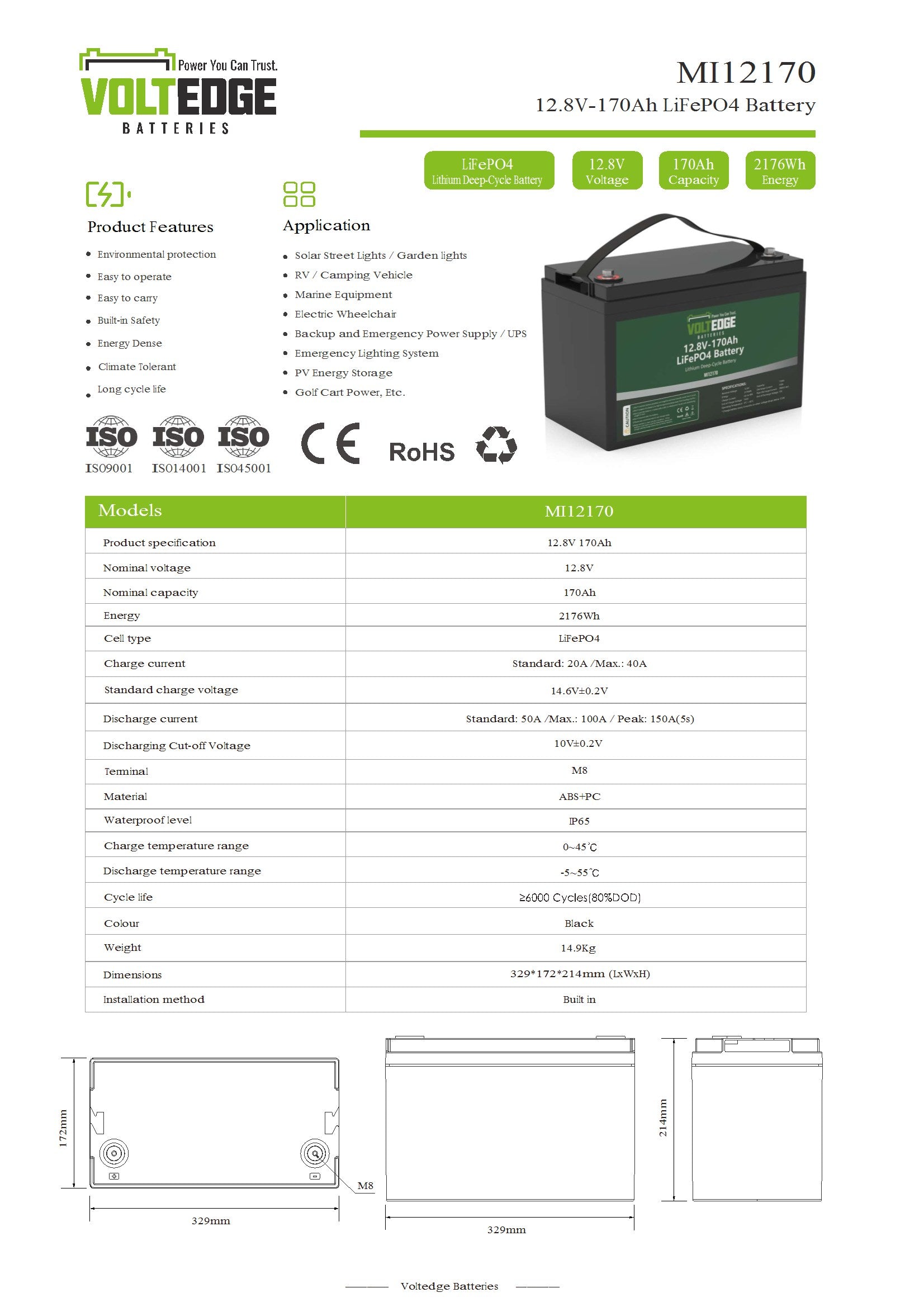

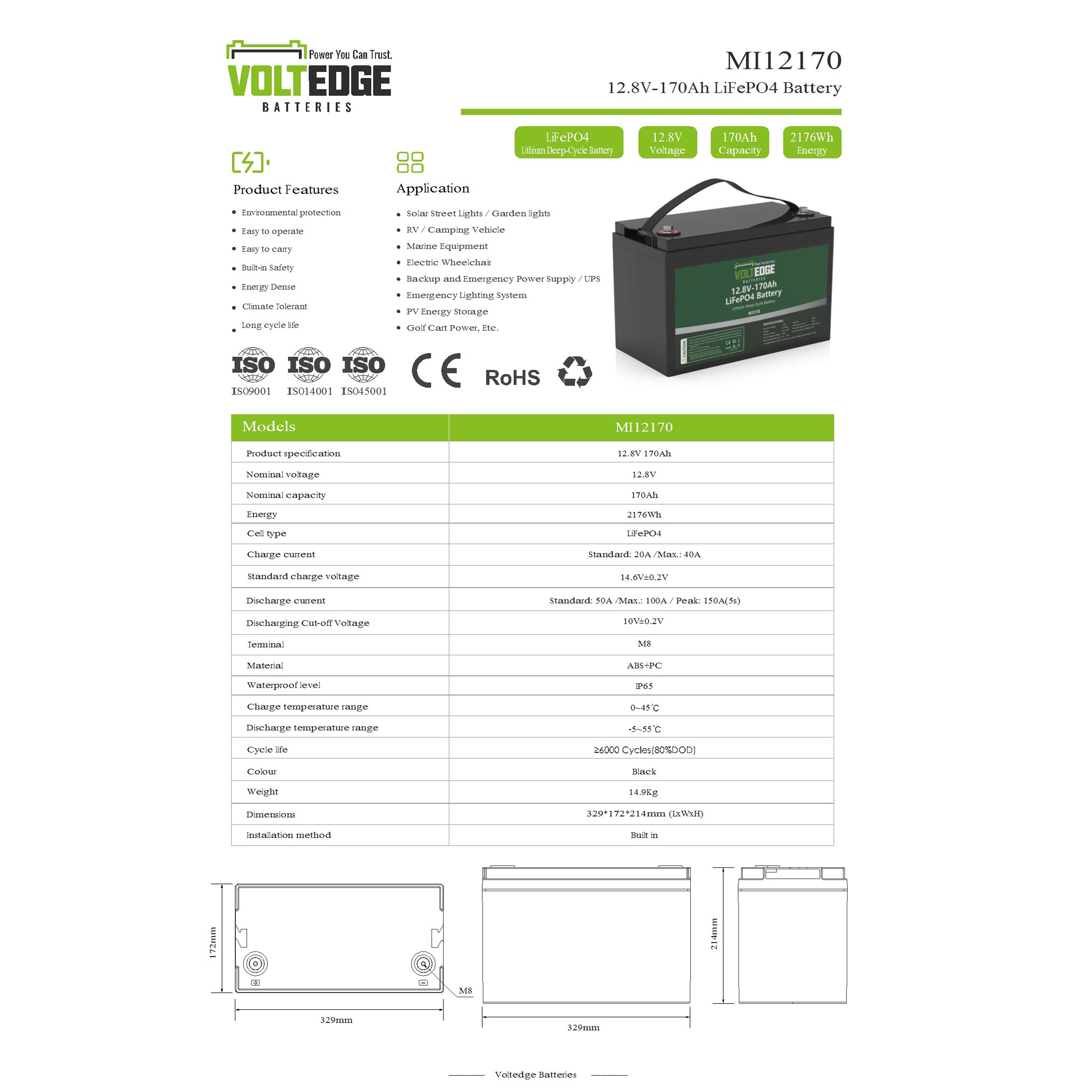

• Model	(Lite)
  Nominal Voltage	12.8V
  Nominal Capacity	170Ah
  Energy	2176Wh
  Cell Type	LiFePO₄
  Charge Current	Standard: 20A / Max: 40A
  Discharge Current	Standard: 50A / Max: 100A / Peak: 150A (5s)
  Standard Charge Voltage	14.6V ± 0.2V
  Discharging Cut-off Voltage	10V ± 0.2V
  Cycle Life	≥5000 Cycles (80% DoD)
  Charge Temp. Range	0°C to 45°C
  Discharge Temp. Range	-5°C to 55°C

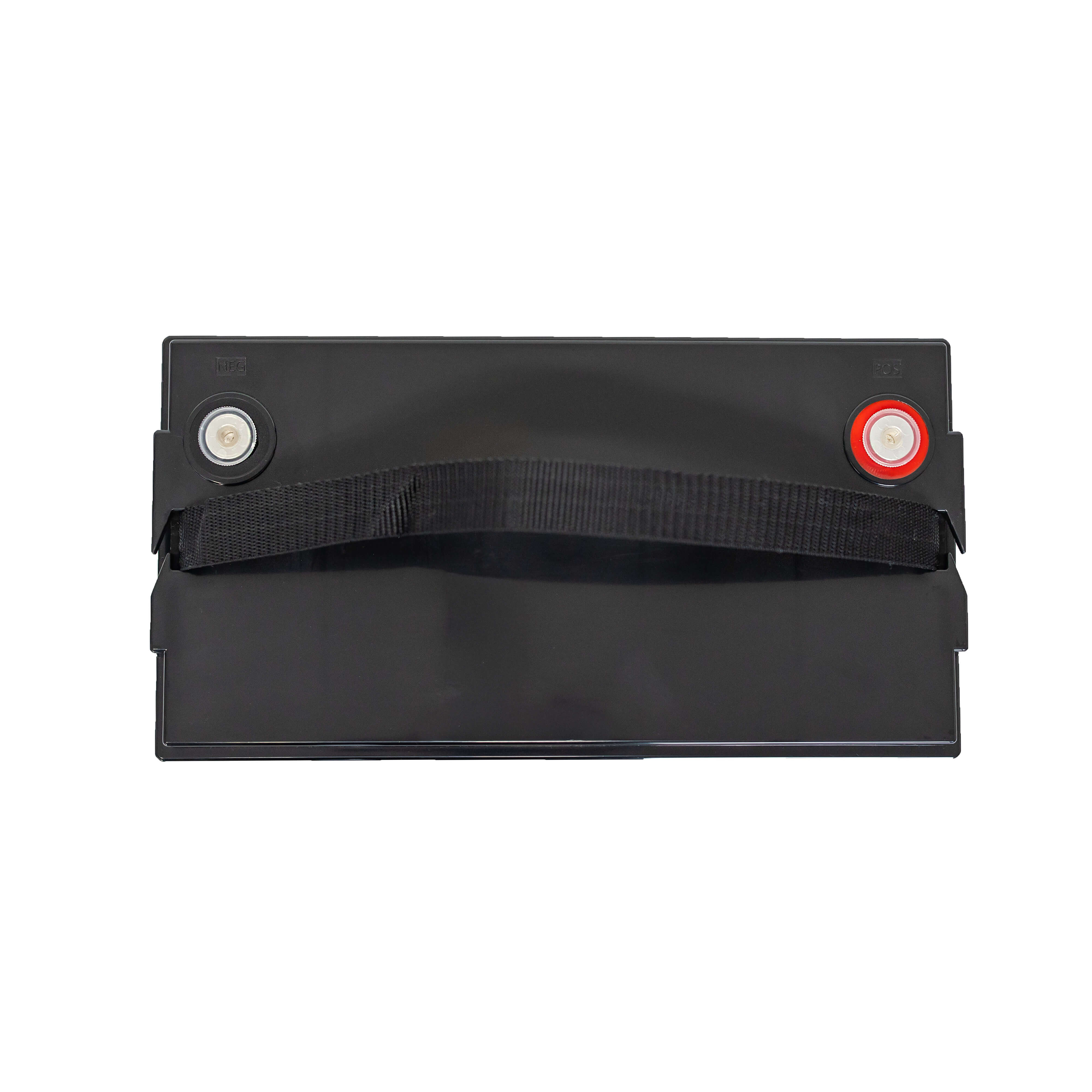

  Terminal	M8
  Material	ABS + PC
  Waterproof Level	IP65
  BMS	100A
  Weight	≈14.9 kg
  Dimensions (L × W × H)	329 × 172 × 214 mm
  Bluetooth	None
